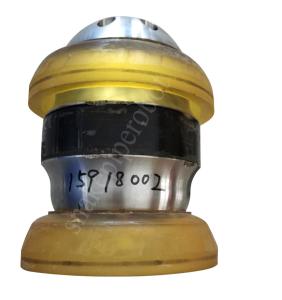

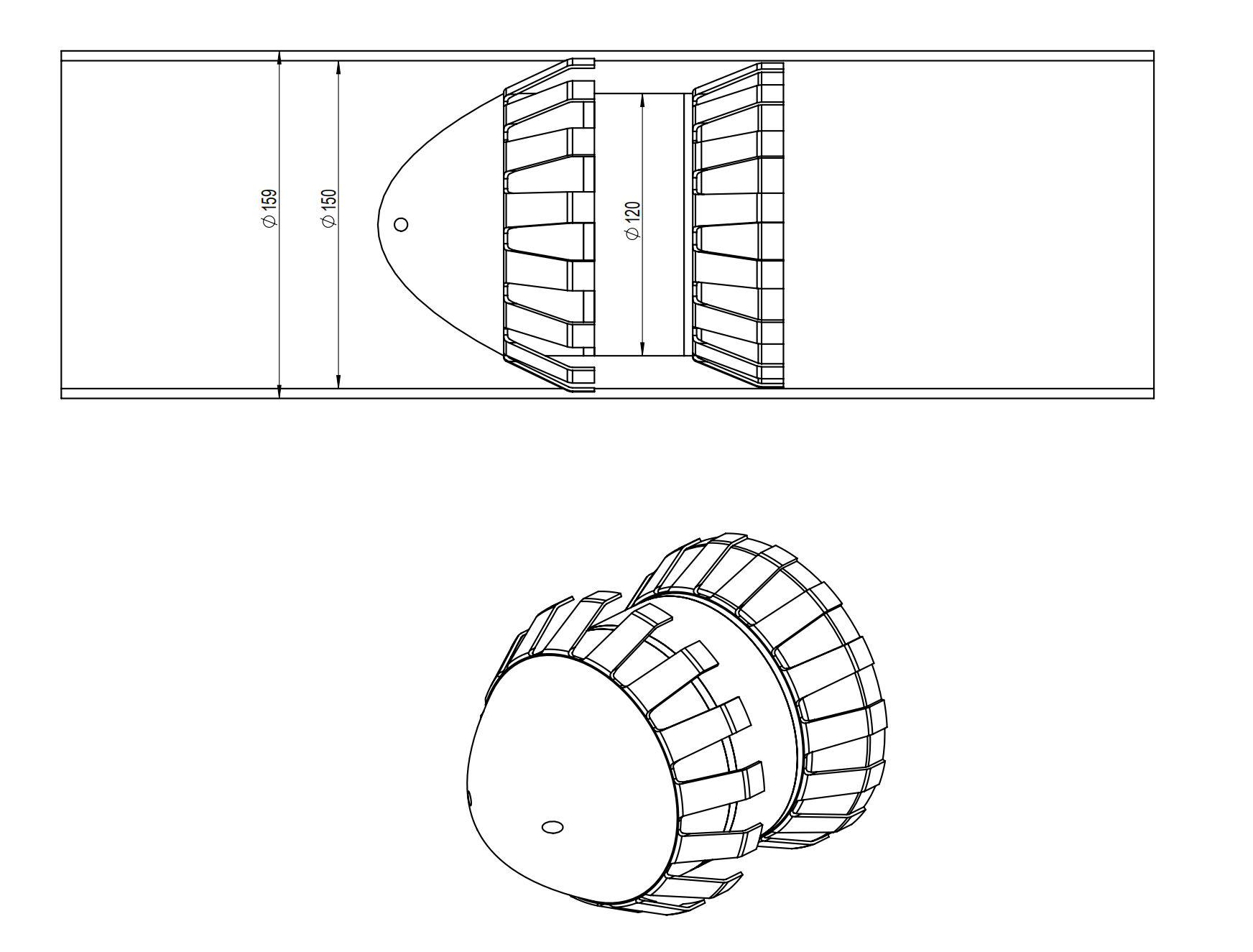

159mm High Speed Pipeline Smart Pig Oilfield Pipeline Inspection Robot
Product description
Snake inspection robot is an intelligent pipe internal corrosion detector. It uses electromagnetic eddy current testing technology and does not need coupline medium and no need to touch the pipe. Robot walks in the pipeline by pressure of fluid or gas. During walking, the corrosion situation of the inner wall of the pipe is collected and recorded by the robot; and the data is analyzed and explained by special software, test report and conclusion are finally formed, and the internal corrosion and severity of the whole pipeline are determined, which provides a scientific and effective basis for the maintenance or replacement of the pipe in the field.
Using ECT inspection method, detecting corrosion in pipeline.The severity of corrosion in the pipeline can be qualitatively judged through special data and software analysis, to guide the management department for maintaining and managing.
Technical specification
| Item | Specifications |
| Pipeline Internal Diameter Range | 60mm~219mm |
| Defect Type | Uniform corrosion, corrosion pits, corrosion perforation and cracks |
| Distance Range | 0~10km |
| Traffic ability | Min Bending Diameter1.5D Inner Diameter Variation±10% |
| Working Temperature Range | -20~60°C |
| Pressure Resistance | 10Mpa |
| Detection Speed | <2km/h |
| Battery Life | 2-3 years |
| Pipeline Type | Oil, gas, water |
Scope of application
As corrosion medium exsited in the transportation fluid during pipeline operation, the corrosion medium will cause metal corrosion in the internal wall of pipeline. While the metal corrosion will cause pipeline getting thinner, crack,defect and even leaking and exploring accident, which are the biggest safety problems the owner and management department facing.
Our inspection robot uses ECT inspection technology,by optimise the mechanical and electrical parts design, the specific ECT inspection circuit can ensure inspection sensitivity and accuracy, can envaluate different defect of pipeline, to guide the managing department to maintain the pipeline properly.
Advantages Of Pipeline ECT Inspection Robot
-Don’t need coupling medium
-High inspection speed
-Automatic inspection
-Non excavation of pipeline
-Non stop production
-Accurate positioning
FAQ
What industry can the robot be used?
--It can be used in petroleum,petrochemical,municipal pipelines,aviation pipelines etc.
Is the laucher needed?
--Yes, lauching and receiving device is needed to be installed.
Is pipeline cleaning is necessary before inspection?
--Yes, pipeline cleaning before inspection is a must.
Where has the robot been used before?
--It has been used in CNPC, SINOPEC, SNOOC in China.
